제품소개

A/D BOARD

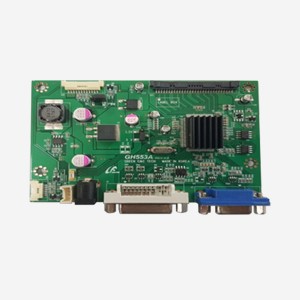

Part No.GH553A(M1)

SCALER IC

  • TSUMU58EK (Mstar)

INPUT SIGNAL

  • RGB / DVI

RESOLUTION

  • FHD(1920x1080)/WUXGA(1920x1200)

SUPPORT VARIOUS INTERFACE

  • LVDS(6/8bit) 1CH / 2CH
  • PANEL POWER 3.3V/5V

FUNCTION

  • AUTO INPUT SELECT
  • AUTO SCREEN ADJUSTMEST
  • COLOR TEMPERATURE SELECT
  • 6 KEY OSD / 6 LANGUAGES

Download filesSPEC

Part No.GH666A(M1)

SCALER IC

  • TSUMU58EK (Mstar)

INPUT SIGNAL

  • DVI

RESOLUTION

  • FHD(1920x1080)/ WUXGA(1920x1200)

SUPPORT VARIOUS INTERFACE

  • LVDS(6/8bit) 1CH / 2CH
  • PANEL POWER 3.3V/5V/12V
  • RS232 Interface, USB UART

FUNCTION

  • AUTO INPUT SELECT
  • AUTO SCREEN ADJUSTMEST
  • COLOR TEMPERATURE SELECT
  • 5 KEY OSD / 6 LANGUAGES

Download filesSPEC

Part No.GH675A(M1)

SCALER IC

  • RTD2281DW-CG (Realtek)

INPUT SIGNAL

  • RGB / DVI

RESOLUTION

  • FHD(1920x1080)/ WUXGA(1920x1200)

SUPPORT VARIOUS INTERFACE

  • LVDS(6/8bit) 1CH / 2CH
  • PANEL POWER 3.3V/5V/12V

FUNCTION

  • AUTO INPUT SELECT
  • AUTO SCREEN ADJUSTMEST
  • COLOR TEMPERATURE SELECT
  • 5 KEY OSD / 6 LANGUAGES

Download filesSPEC

Part No.GH675B(M1)

SCALER IC

  • RTD2281DW-CG (Realtek)

INPUT SIGNAL

  • RGB / HDMI(DVI)

RESOLUTION

  • FHD(1920x1080)/ WUXGA(1920x1200)

SUPPORT VARIOUS INTERFACE

  • LVDS(6/8bit) 1CH / 2CH
  • PANEL POWER 3.3V/5V/12V

FUNCTION

  • AUTO INPUT SELECT
  • AUTO SCREEN ADJUSTMEST
  • COLOR TEMPERATURE SELECT
  • KEY OSD / 6 LANGUAGES

Download filesSPEC

Part No.GH740A(M1)

SCALER IC

  • RTD2482TD (Realtek)

INPUT SIGNAL

  • RGB / DVI

RESOLUTION

  • Array

SUPPORT VARIOUS INTERFACE

  • Array

FUNCTION

  • Array

Download filesSPEC

Part No.GH792A(M1)

SCALER IC

  • RTD2797PM-CG (Realtek)

INPUT SIGNAL

  • HDMI 2.0 / DP 1.2

RESOLUTION

  • Array

SUPPORT VARIOUS INTERFACE

  • Array

FUNCTION

  • Array

Download filesSPEC
